Chain Cutting Machine
Description

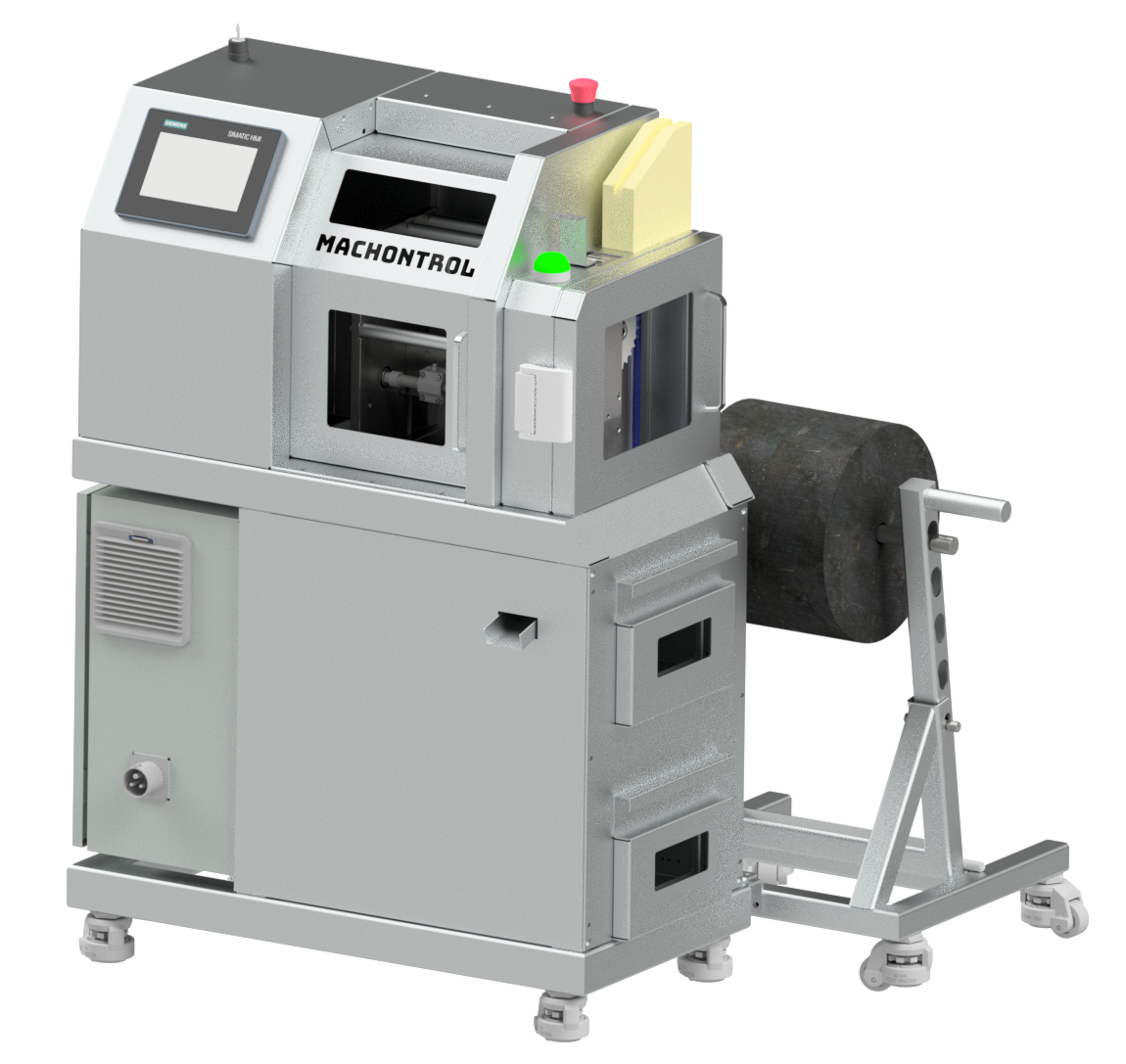

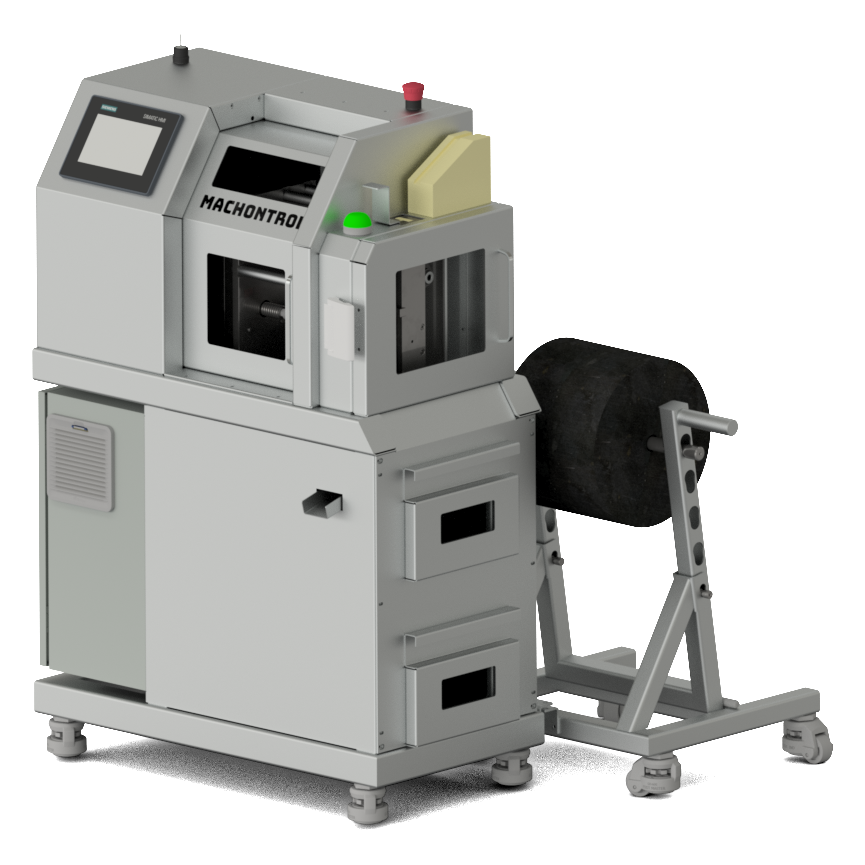

The MDC-26 cuts bicycle chains to the exact length each model needs. No counting links by hand, and no chain leaving the station one link short.
The pin is pushed out by a servo-controlled press, not a pneumatic cylinder. Force and stroke are controlled through the whole movement, so every pin comes out the same way – the side plates are not bent or stressed, and the result does not drift with the air pressure on your line.
Chain lengths are stored as recipes on the HMI, so the length that runs is the one approved for that model, not one set by the operator. At 850 × 420 mm, below 74 dB and on 220 V single phase, it sits beside an existing pre-assembly station without taking over the floor.
OPC UA is standard, so orders can be sent to the machine and production data read back from your own systems.
- Consistent chain lengths. Every chain cut to the length approved for that model.
- Servo pin removal, not pneumatic. Controlled force and stroke on every pin, so the plates are not bent and the result does not drift with air pressure.
- 12–20 s per chain. Depending on chain size.
- The approved settings, every time. Chain lengths stored as recipes on the HMI.
- Compact and light. 850 × 420 mm, 160 kg, below 74 dB. Runs on 220 V single phase.
- Connected from day one. OPC UA as standard: send orders to the machine and read production data back from your office systems.
| Operation | |
|---|---|
| Cycle time | 12 – 20 s per chain, depending on size |
| Drive | Servo-controlled chain pin removal |
| Tooling change | Required between chain sizes |
| Control & connectivity | |
| Control | Siemens PLC |
| HMI | 7″ Siemens HMI, up to 80 manufacturing orders |
| Connectivity | OPC UA |
| Installation | |
| Dimensions (w × l × h) | 850 × 420 × 1250 mm |
| Weight | 160 kg |
| Electrical connection | 220 V, single phase, 50/60 Hz |
| Sound level | Below 74 dB |
| Conformity | |
| CE conformity | EU Machinery Directive 2006/42/EC |
Frequently asked questions
How fast is it?
12 to 20 seconds per chain depending on size, with lengths stored as recipes on the HMI.
Does it need a tooling change?
Only between chain sizes. Within a size, every model runs from a stored recipe on the HMI, so there is no manual adjustment between models.
How much floor space does it take?
850 x 420 x 1250 mm and 160 kg.
Tired of cleaning the cutting area?
Not with the MDC-26. The chain is separated by pushing the pin out with a servo-controlled press. And the roller rings does not get stuck in the tool, so there is nothing to clear out between chains – the operator just loads the next one.
Tired of overpaying for pre-cut chains?
Buy chain on the reel and cut it in-house. Chain lengths are stored as recipes on the HMI, so every model gets exactly the length it needs – no paying extra for pre-cut chains and no stock of pre-cut lengths for every model.
Can it talk to our factory systems?
Yes. OPC UA is standard on every machine we build, not a paid option, and every machine conforms to EU Machinery Directive 2006/42/EC. If you are working toward a connected line, nothing here holds you back.
Reading and writing the machine’s order table from an office PC over OPC UA.
