Cable Housing Cutting Machine
Video shows the previous version of this machine.
Description

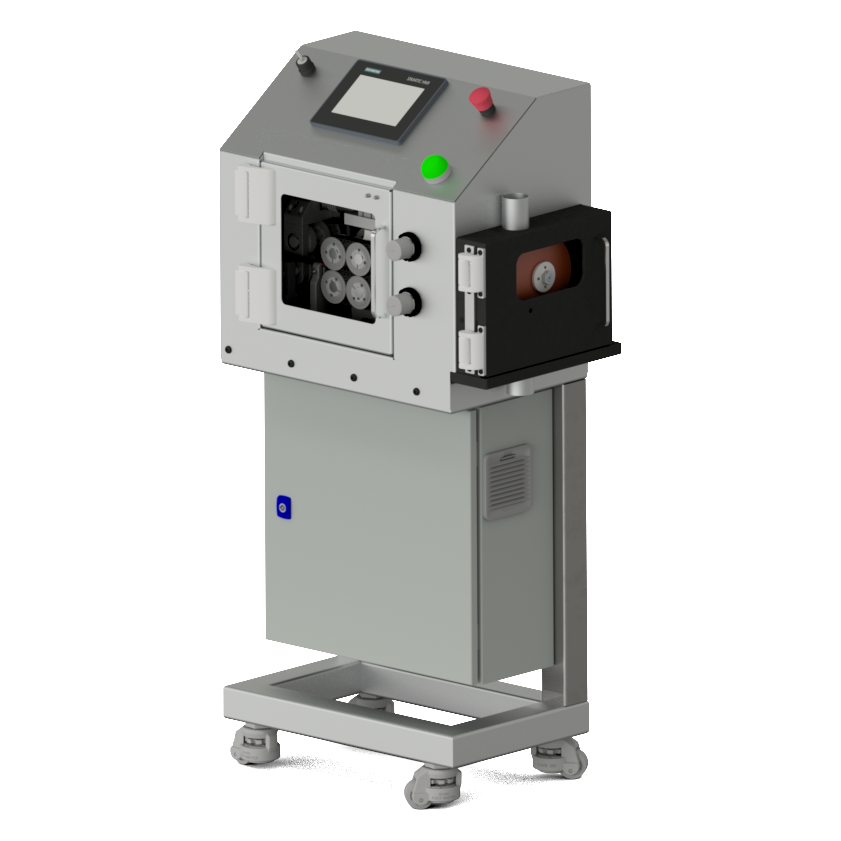

The MCC-27 cuts brake and gear housing to length automatically, held to ±0.2 mm with ±0.1 mm repeatability. Housing cut short or long turns into a fitting problem further down the line; here the length that runs is the one approved for that model.
Switching between housing sizes needs no tooling change – just a recipe selected on the HMI. The machine is prepared to connect and control a vacuum system, so cutting debris is extracted at the machine instead of ending up inside the housing or on the bench.
At 650 × 360 mm it needs less floor space than a workbench and fits into an existing line without rearranging it. OPC UA is standard.
- Fast, consistent cable housing. Up to 400 mm/s with ±0.2 mm cut length and ±0.1 mm repeatability.
- Every housing size, no tooling change. Switch between housing types with a recipe on the HMI.
- A clean workstation. Prepared to connect and control a vacuum system.
- The approved settings, every time. Up to 80 manufacturing orders stored on the HMI.
- Small footprint. 650 × 360 mm, 200 kg – easy to place at the pre-assembly area.
- Connected from day one. OPC UA as standard: send orders to the machine and read production data back from your office systems.
| Operation | |
|---|---|
| Cutting speed | Up to 400 mm/s |
| Drive | Servo-controlled positioning |
| Tooling change | Not required between housing sizes |
| Dust extraction | Prepared to connect and control a vacuum system |
| Precision | |
| Cut length tolerance | ±0.2 mm |
| Repeatability | ±0.1 mm |
| Control & connectivity | |
| Control | Siemens PLC |
| HMI | 7″ Siemens HMI, up to 80 manufacturing orders |
| Connectivity | OPC UA |
| Installation | |
| Dimensions (w × l × h) | 650 × 360 × 1550 mm |
| Weight | 200 kg |
| Electrical connection | 400 V, 3-phase, 50/60 Hz |
| Sound level | Below 79 dB |
| Conformity | |
| CE conformity | EU Machinery Directive 2006/42/EC |
Frequently asked questions
How much housing can it get through?
It cuts at up to 400 mm/s, with lengths stored as recipes on the HMI – so a model change is a selection, not a re-setup.
Do we need different jaws for different housing?
No. The adjustable jaw covers your housing sizes with no tooling change at all.
What about the dust?
The machine is prepared to connect and control a vacuum system, so cutting debris is handled at source instead of collecting around the station.
How much floor space does it take?
650 x 360 x 1550 mm and 200 kg – the most compact machine in our range, designed to drop into an existing line rather than force you to rearrange it.
Can you adapt it to our line?
Yes. We design, machine, weld and program everything in-house in Portugal, so changing a fixture, a stroke or the HMI logic for your process is engineering work rather than a special request to a factory on another continent.
Tired of overpaying for pre-cut cable housing?
Buy housing on the roll and cut it in-house. Lengths are stored as recipes on the HMI and switching between housing sizes needs no tooling change, so you cut exactly what each model needs – no paying extra for pre-cut housing and no stock of pre-cut lengths.
Can it talk to our factory systems?
Yes. OPC UA is standard on every machine we build, not a paid option, and every machine conforms to EU Machinery Directive 2006/42/EC. If you are working toward a connected line, nothing here holds you back.
Reading and writing the machine’s order table from an office PC over OPC UA.
